Small-scale Production Freeze-drying Equipment

If the small-scale production freeze-drying equipment caters to your requirement, welcome to buy the precise equipment made in China from our factory. We are one of the professional manufacturers and suppliers in China who can offer you unmatched services and prices. And the customized service is also available. Don't hesitate any more.



Small-scale Production Freeze-drying Equipment

With the application of Cordyceps Sinensis freeze-drying technology, the dried Cordyceps Sinensis products processed by low-temperature freeze-drying of vacuum freeze-drying equipment are close to the fresh form, and the active ingredients of Cordyceps Sinensis are not lost and can be stored for a long time at room temperature and easy to transport.

Small-scale production freeze-drying equipment for Cordyceps Sinensis

The vacuum freeze-drying equipment manufacturers have sorted out: which is better for cordyceps freeze-drying or sun-drying? Compared with other drying methods, it has the following advantages:

①The internal moisture of Cordyceps Sinensis should be completely frozen and directly transformed from a solid-state to a gaseous state. Its temperature and pressure should be controlled at least below the triple point of water (0.01℃, 610.5Pa). The whole drying process is carried out in low temperatures and very thin air. Therefore, it can avoid the destruction of heat-sensitive components and the oxidation of easily oxidizable components in the common drying process, the product active substances (especially the medicinally active ingredients) have a high preservation rate, the volatility of aromatic substances is reduced, and the product has a strong taste.

②Pre-freezing of Cordyceps Sinensis is carried out before drying to form a stable solid skeleton. After the water evaporates, the solid skeleton basically remains unchanged, and its shrinkage rate is much lower than that of products dried by other methods, which better maintains the shape of the material and has Better appearance quality.

③After the pre-freezing of Cordyceps Sinensis, the internal moisture exists between the solid skeletons in the form of ice crystals, and the inorganic salts and other substances dissolved in the water are also distributed evenly, and they are precipitated on the spot during sublimation, which avoids the general drying process. During migration, the carried inorganic salts precipitate on the surface, resulting in the hardening of the surface of the medicinal material.

④Due to the reduction of the chemical reaction rate and the passivation of enzymes at low temperature, there is almost no fading caused by pigment decomposition and browning caused by enzymes and amino acids during the freeze-drying process, so the freeze-dried Cordyceps Sinensis products do not need to add any. Colorants and additives are safe and hygienic.

⑤ Thorough dehydration, lightweight, good preservation, suitable for long-distance transportation and storage. Under normal temperatures, the use of vacuum packaging, shelf life of up to 3 to 5 years.

Parameter:

Model	KFD -1	KFD -2	KFD -5	KFD -10	KFD -20
Type	(Conductive Type)
Ice capacity (Kg/batch)	15KG	30KG	75KG	150KG	300KG
Condenser temperature (°C )	< -45 C
Shelf temperature (°C)	-30 ~60 °C
Pre -freezing	(in Original Place)
Shelf area (m2)	1 m2	2 m2	5 m2	10 m2	20 m2
No. of shelves	5+1	6+1	5+1	11+1	14+1
Shelf dimensions (m)	0.5*0.4	1.0*0.4	1.25*0.8	1.2*0.8	1.45*1.0
Shelf spacing (mm)	60	60	70	70	70
Medium	(Silicon Oil)
No. of trays	5pcs	12pcs	30pcs	66pcs	126pcs
Tray dimensions (mm)	400*500	345*495	395*415	395*395	470*325
Refrigerant	R404A
Cooling Method	(Air-cooled) / (Water-cooled)
Final vacuum (Pa)	10Pa
Deforesting method	(Hot water) / (Steam)
Total power (kW)	9kw	13kw	20kw	40kw	50kw
Installation area (m2)	3	6	9	11	15
Chamber dimension(m)	1.2*0.6*1.8	1.5*1.0*1.8	2.5*1.3*2	3.0*1.3*2.5	3.7*2*2.5
Weight (kg)	1500	2000	2500	3800	8500

FAQ:

Q1：Freeze dryer price?

A： Among the lyophilizer suppliers of the same level, we belong to the people-friendly, competitive and reasonable price.

Q2：What is the energy consumption of the freeze dryer?

A： We can save energy in many ways, such as pre-freezing, reducing energy losses, and using frequency conversion technology. Reduce the power of compressors and vacuum pumps, while ensuring product quality, reducing energy consumption, and reducing machine costs.

Q3：Can you provide a total solution?

A： Certainly. We are a professional manufacturer of customized vacuum freeze dryer overall solutions; we mainly produce all kinds of large fruit and vegetable freeze dryers | food freeze-drying equipment | production freeze dryers | small freeze dryers | pilot freeze-dryers, etc..

Q4:Is it all right to make a customer's own brand name?

A： Yes, we will meet the needs of customers.

Q5：Are you a manufacturer or trading company?

A: We are the manufacturer with decades of research and development production experience.

Q6: Can you do the design for us?

A: Sure. We will supply you with a proposal as to your specific requirement, and each machine is customized to satisfy the customer’s needs well.

Q7: How can I get a sample to check your quality?

A: We could send you the samples but the freight and the sample is charged.

Q8: How long can I expect to get the sample?

A: We will send the samples to you within 30 days after confirming your needs, and the sample arrival time depends on our distance.

Q9: Packaging & Shipping:

A: Export Wooden case&FOB Shanghai/Ningbo.

Our service:

1. Factory Acceptance Test

2. Equipment installation

1) Equipment layout design.

2) Video guidance for installation details and key parts.

3) Submit the installation plan.

4) Dispatch engineers (with professional translators) for on-site installation and acceptance.

3. User training

1) Provide users with a series of professional training from equipment installation and use to maintenance.

2) Provide long-term free technical consultation on product performance, use, maintenance, etc.

4. Pre-sales and after-sales service commitment

1) Customized service

2) Standard documents

Provide supply documents and verification documents according to the actual situation of users.

3) Equipment warranty

4) Equipment troubleshooting

5. Packaging and Delivery

Sea, land, and air are all supported.

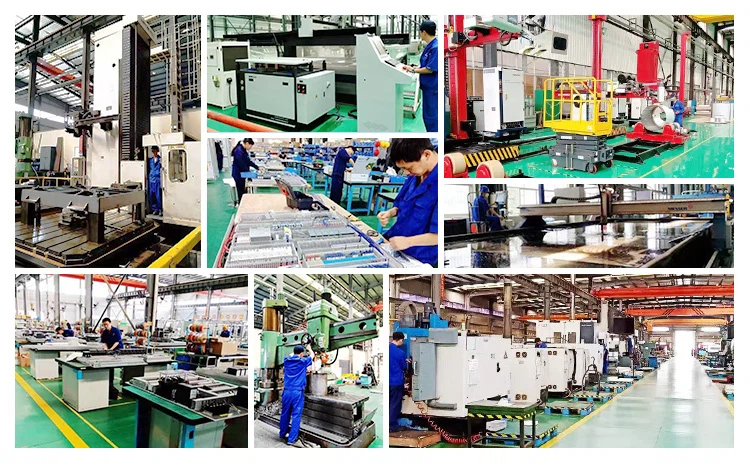

WORKSHOP:
