Product Introduction

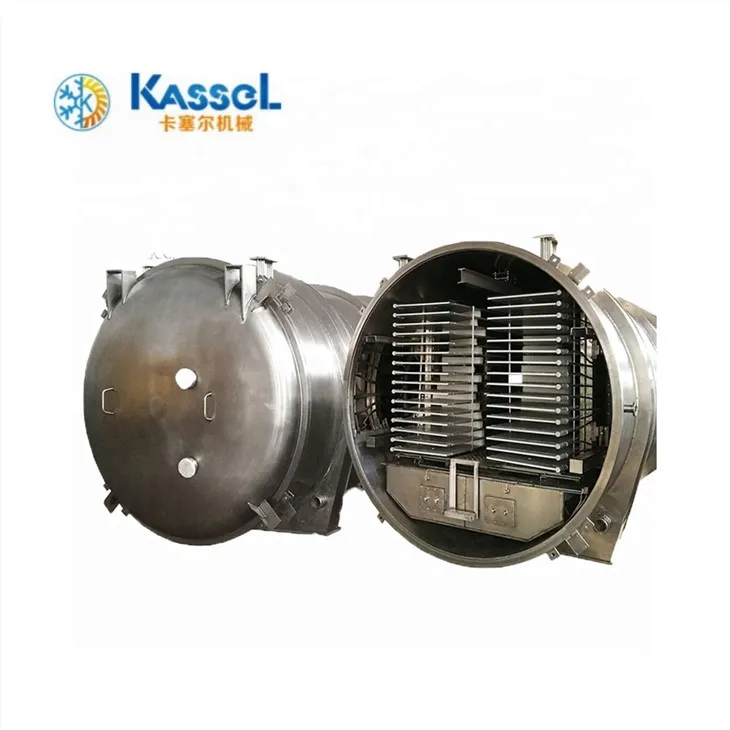

Freeze-drying machine for instant tea powder

Instant tea powder, such as rose, black tea, jasmine, green tea, osmanthus, oolong, chrysanthemum, puer, etc., is extracted from the effective components of tea by means of extraction, and formed by scientific combination of the extracted tea, which belongs to plant extracts. Instant tea powder has the advantages of no pesticide residue, no addition, completely soluble in water, and suitable for both cold and hot. Now the extraction liquid is freeze-dried to get instant tea through the complete set of technology of Shanghai Tofen lyophilizing machine. The instant tea powder has the advantages of brewing without residues, carrying and using easily, no additives, and keeping nutrients as a good health product. It is convenient to brewing, and no requirements for tea sets, so you can enjoy the fun of tea drinking at any time. Our company freeze-drying machine complete set of equipment to provide solutions, including pre-treatment, purification, concentration, pre-freezing, drying, weighing, packaging and other complete sets of equipment and technology. Provide turnkey engineering services.

blob

The main technical characteristics of the complete set of lyophilized drying machine are: meet the requirements of GMP standard, PLC system industrialized management operation, complete set of advanced technology, energy saving and environmental protection, stable and safe operation, etc. The equipment adopts 304 stainless steel quality material, the unit chooses the big brand or the import brand, the control and the software system company independent research and development, has a number of national patents.

Model	KFD-20	KFD-25	KFD-30	KFD-50	KFD-100
Tray area(m²)	20	25	30	50	100
Input capacity(kg/batch)	200	250	300	500	1000
Min. cold trap temperature(℃)	<-45℃	<-45℃	<-45℃	<-45℃	<-45℃
Vacuum degree(pa)	<10pa	<10pa	<10pa	<10pa	<10pa
Tray temp.	-35~+100℃	-35~+100℃	-35~+100℃	-35~+100℃	-35~+100℃
Tray quantity	18	22	18	28	36
Tray Size(mm)	2200x600	2200x600	3300x600	3300x600	5000x600
Cooling method	Water cooled	Water cooled	Water cooled	Water cooled	Water cooled
Total power(kw)	45	50	60	100	180
Total weight(kg)	8000	9000	11000	20000	40000
