Protable Cryogenic Freezer For Vaccine

Protable Cryogenic Freezer For Vaccine

Introduction of Protable Cryogenic Freezer For Vaccine

The ultra-low temperature Portable freezer is specially designed for Vaccine transportation.It is small in size, light in weight, and the lowest temperature can reach -80℃. It solves the industry's pain points in liquid nitrogen transportation and makes up for the shortage of liquid nitrogen transportation. The machine has a built-in large-capacity lithium battery options available,which can be used to transport the vaccines without any external power source.

At the same time, the RFID electronic lock in connection with the loT to ensure the safety of transported goods. The loT supports real-time track and trace of machine and operating data,remote control of the machine and export of data, enable user to achieve full control and traceability.

10L internal volume, temperature control accuracy ± 2 "℃,ultra-low temperature controlled mobile safe with adjustable temperature range from -80 ℃ to30 "℃, used to transport biological samples such as vaccines, bacterial viruses,blood, human organs, Immune medical products and other goods that have extremely high temperature requirements.

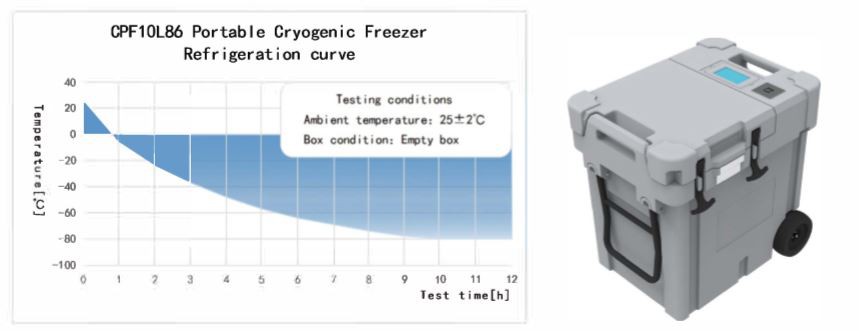

Parameters

Features

Safety guarantee

±2 ℃ temperature control accuracy of the whole box to avoid temperature fluctuation;RFID digital lock protects your samples in all aspects (this function is optional;

Equipped with WiFi digital IOT module or optional 4GLTE+GPS module to achieve the whole process monitoring and alarms (monthly fee is required for 4G service);

Cabinet design

Integrated high pressure foam, 20mmVIP (vacuum insulation panel), double layer submersible door, leakage, the lowest temperature can reach -B0Cinside available volume is 10L. suitable for the transportation of Vaccines.All-metal integrated inside box,proprietary coating technology to ensure liner cleanness, test tube accessories, so that samples/vaccine temperature no longer fluctuates and transported safely.

Intelligent temperature control

Sampling with laboratory grade PT100 thermo-sensor,ensuring temperature accuracy;Temperature learning algorithm for intelligent temperature sampling at 200 times per second;Intelligent programming mode, program-con-trolled cooling (Stage mos version 6 will open this function, which needs to cooperate with the LOTA cloud platform and subsequent OTA upgrades)

Cooling system

Advanced Stirling technology .using Cryo S series,Cryo S 100'Stirling refrigerator as the core cooling source.

Ultra-low temperature, fast cooling and no fear of bumps and shakes, maintenance free life up to 50,000 hours

External dimension

Internal dimension
