Freeze dryers are our major products, the size of freeze dryers varies from 0.5 to 200m². Any detailed parameters can be customized until it meets customers’ requirements. Our product has one year warranty, and our team has years of experience in this freeze drying field.

Send Inquiry

Chat Now

Product Introduction

Vacuum freeze drying technology

The full name of vacuum freeze-drying technology is a comprehensive technology combining vacuum, freezing and drying, involving multi-disciplinary fields, such as vacuum, heat and mass transfer, fluid mechanics, refrigeration, automatic control, biological engineering, etc. Therefore, the durability of food lyophilization machine, due to the impact of thermal expansion and contraction, different materials are different service life.

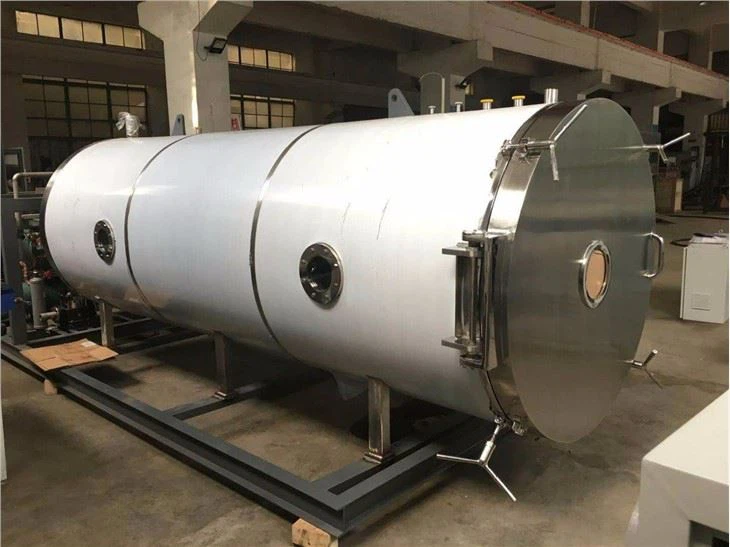

Large vacuum freeze dryers

At present, food freeze-drying machine equipment in China is divided according to the pre-freezing mode, which has two forms: shelf pre-freezing type and cold storage type. The new generation shelf pre-frozen food freeze-drying machine cylinder and shelf are made of 304 stainless steel, and the service life of the equipment is more than 10 years.

Industrial large freeze dryer

The cylinder of the cold storage type lyophilized dryer is generally made of carbon steel, and the shelf is made of aluminum. The service life of the equipment is 4 to 6 years.

The difference between shelf prefreeze type and cold storage type food freeze-drying machine: shelf prefreeze type is raw materials processed after loading into the drying chamber of the freeze-drying machine directly, after the end of the prefreeze directly switch to the drying stage, can accurately control the temperature of the material according to the requirements, so that the shape, color and nutritional composition of the finished product are basically unchanged.

Parameter:

Model	KFD-20	KFD-25	KFD-30	KFD-50	KFD-100
Tray area(m²)	20	25	30	50	100
Input capacity(kg/batch)	200	250	300	500	1000
Min. cold trap temperature(℃)	<-45℃	<-45℃	<-45℃	<-45℃	<-45℃
Vacuum degree(pa)	<10pa	<10pa	<10pa	<10pa	<10pa
Tray temp.	-35~+100℃	-35~+100℃	-35~+100℃	-35~+100℃	-35~+100℃
Tray quantity	18	22	18	28	36
Tray Size(mm)	2200x600	2200x600	3300x600	3300x600	5000x600
Cooling method	Water cooled	Water cooled	Water cooled	Water cooled	Water cooled
Total power(kw)	45	50	60	100	180
Total weight(kg)	8000	9000	11000	20000	40000

Pre-sale:

As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable freeze dryer. Detailed tech-info will also be provided for you.

After-sale:

We will keep in touch with you, to make sure every parts of the freeze dryer work well. One year warranty, free online service.
