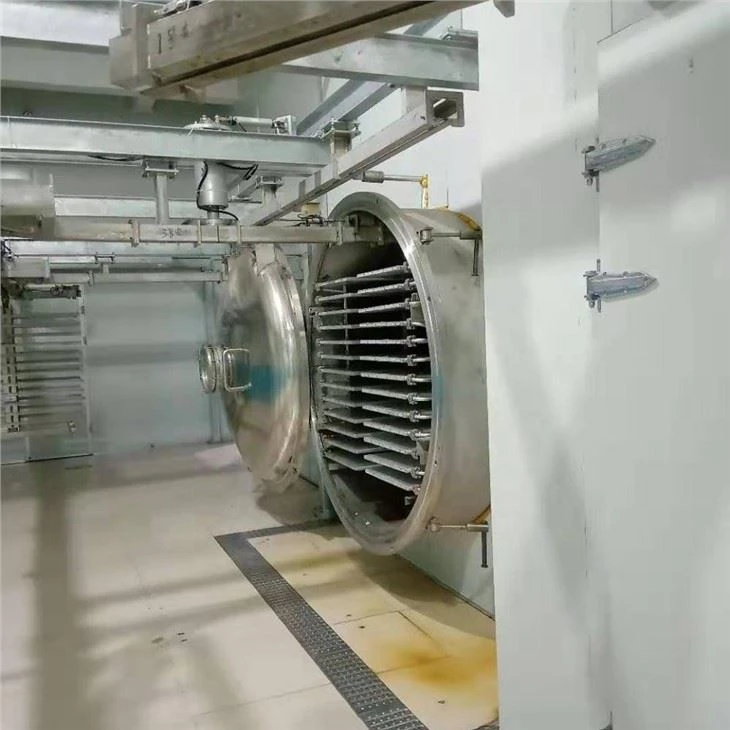

Large Advanced Vegetable Fruit Powder Freeze Dryer
Input capacity:2000kg
Highlights:Can be customed
Warranty:One year
Large Advanced Vegetable Fruit Powder Freeze Dryer
Products Description
Characteristics：
High-efficiency processing capacity: able to handle 2000 kg of material at once, ideal for requirements involving mass production.
Advanced freezing technology： uses a multi-stage freezing technique to guarantee that the material freezes promptly at a low temperature, safeguarding the material's active components and cell structure.
Vacuum drying system: the material is dried and dehydrated by immediately sublimating the frozen water into gas through vacuuming. This technique can optimize the material's structure and nutrient retention.
Automation control: With a touch screen interface and sophisticated PLC control system, exact control and real-time monitoring are made possible to guarantee the stability and repeatability of the freeze-drying procedure.
Energy saving and environmental protection: adopts energy-efficient refrigeration system and heat recovery technology to reduce energy consumption and reduce environmental impact.
Application ：
Used for freeze-drying of fruits and vegetables to extend shelf life and preserve flavor and nutrition.
Advantages of vacuum freeze dryer:
Comparing with traditional hot air dehydrated products, the Freeze Dry products have unique characters and advantages. The most clear difference is the appearance of the final products, the FD products will keep the same shape and color as they were frozen, it won't become shrink or darken after drying. Further inside quality of the products, due to low temperature drying technology, the nutritons within the products have been preserved at the highest level.
Installation and maintenance：
Installation requirements: Sufficient space, appropriate power supply and ventilation system are required to ensure the normal operation of the equipment.
Maintenance: Regularly check and maintain the refrigeration system, vacuum system and control system to ensure stable operation of the equipment and extend its service life.
Equipment parameters
|
Model |
KFD-200 |
|
Capacity (Kg/Batch) |
2000 |
|
Shelf Area (㎡) |
201 |
|
Shelf Size (Mm) |
9900*600 |
|
Shelf Quantity (Layer) |
17+1 |
|
Shelf Quantity (Piece) |
36 |
|
Space Between(Mm) |
95 |
|
Shelf Temperature (℃) |
room to 120 |
|
Water Catcher Temper (℃) |
-65±5 |
|
Max Catch Water(Kg) |
3000 |
|
Ultimate Vacuum (Pa) |
5 |
|
Electricity(Kw) |
384 |
|
Weight(Kg) |
50000 |
FAQ:
Q:What is the freeze-drying capacity of KFD-200?
A:In order to achieve the best freeze-drying effect, it is best to place no more than 2000kg of raw materials, but for light materials it will be less.
Q:Is there any person to guide when installing the equipment?
A:We will send 1-2 staff members to provide on-site guidance
Q:How long is the warranty period?
A:We provide one year warranty.
Q:How to handle different types of samples?
A:Different types of samples may require different pretreatment and freeze-drying procedures. According to the physical and chemical properties of the sample, adjust the parameters such as pre-freezing temperature, drying time and temperature to achieve the best freeze-drying effect.
Toption Culture
We are a young, professional and creative team,
We are customer-centric and responsible team.
Our mission: make your research more accurate and efficient.
Our vision: Become the world's most competitive large freeze dryer provider.
Our value: Sharing & win-win, customer success, be thankful, keep growing, innovation and responsible.
