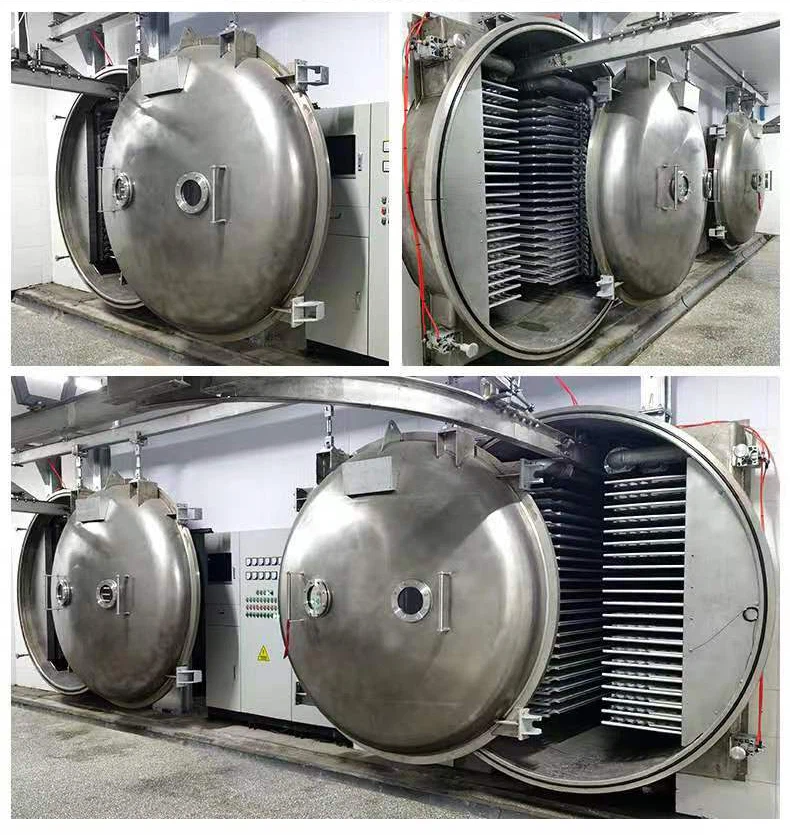

Global General Fruit Drying Machine

Technical parameters

Model	KFD-20	KFD-25	KFD-30	KFD-50	KFD-100
Tray area(m2)	20	25	30	50	100
Input capacity(kg/batch)	200	250	300	500	1000
Min. cold trap temperature(℃)	<-45℃	<-45℃	<-45℃	<-45℃	<-45℃
Vacuum degree(pa)	<10pa	<10pa	<10pa	<10pa	<10pa
Tray temp.	-35~+100℃	-35~+100℃	-35~+100℃	-35~+100℃	-35~+100℃
Tray quantity	18	22	18	28	36
Tray Size(mm)	2200x600	2200x600	3300x600	3300x600	5000x600
Cooling method	Water cooled	Water cooled	Water cooled	Water cooled	Water cooled
Total power(kw)	45	50	60	100	180
Total weight(kg)	8000	9000	11000	20000	40000

Packaging & Delivery

Standard export wooden cases
45days

Technical Highlights
1. Low dew-point design:2( -23possible under atmospheric pressure).

2. High efficient plate-fin heat-exchanger (an ERIDAE proprietary technology):To improve both the heat-exchange efficiency and the product operation reliability, and to elongate the equipment service life.
R407C environment-friendly refrigerator:To help products meet the most strict environment protection standards.

3. Refrigerant flow rate-controlling valve:To guarantee controlling precision, system operation smoothness and reliability under a loading condition of 0 to 100%.

4.Heat-exchange between inlet/outlet airs:To achieve energy saving of over 30%, to avoid dewdrops at the refrigeration dryer outlet pipeline, and to reduce consumption due to malfunction and operational expenditure.

5.Sensor controlling technology complete with the microcomputer application:To ensure smooth equipment operation all the year without interruption while to maintain a stable dew point, and to improve the reliability and service life of the refrigeration compressor.

6. Intelligent controlling system (an ERIDAE proprietary technology):To keep all system components and parameters at an optimal level.

Why choose us?
1. KASSEL have 18 years experience for producing freeze dryer machine.

2. KASSEL is the biggest exporter in China for freeze dryer

3. KASSEL have 26 kinds of patent.

4. KASSEL have the advanced producing line and quality control equipment.

5. KASSEL have a top technician team.

6. KASSEL have ISO9001&CE Certificate.
