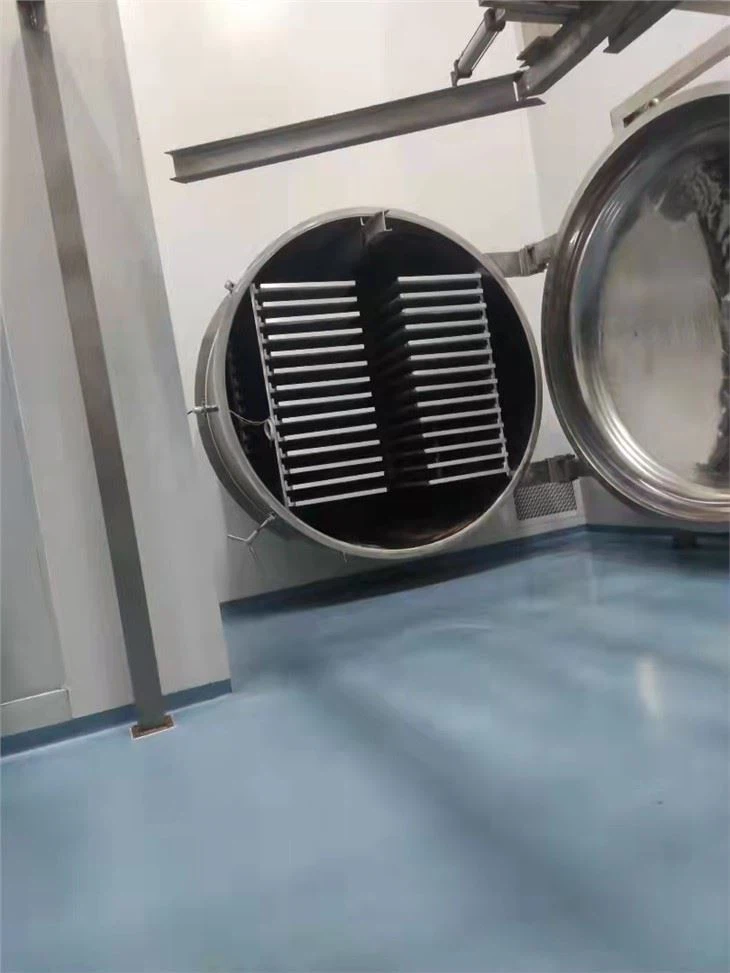

Food Grade Freeze Dryer
Size: from 0.5 to 200m²
Highlight: can be customized
Warranty:one year
Food Grade Freeze Dryer
Main features of food grade freeze dryer:
1. Strong water capture efficiency and capacity: stainless steel external wound water trap is adopted to avoid the interference of cooling capacity on materials during freeze-drying, the water vapor channel is unobstructed and the freeze-drying consistency of materials is good;
2. Structural design in accordance with pharmaceutical standards: the internal fillet, surface roughness, shelf flatness and internal materials of freeze-dried cavity meet pharmaceutical standards;
3. Stable and reliable control system: industrial PLC control system and 10 inch color touch screen are adopted. The system operates stably and reliably, human-computer interaction is friendly, and the display screen has screen locking function;
4. Computer remote control and data off-line analysis of food grade lyophilizer: USB and TCP interfaces are configured to realize computer remote real-time control and chart recording; Downloadable freeze-drying data offline processing and analysis;
5. It has automatic alarm and protection functions, easy to judge equipment faults, and safe and reliable equipment operation;
6. Freeze drying process control: the freeze drying process is automatically controlled by programmable program, and the semi-automatic or full-automatic control can be switched in real time to realize the whole process parameter control of freeze drying process;
7. It is designed and manufactured according to relevant standards of production-oriented lyophilizer. The real material lyophilization pilot production has the advantages of low energy consumption, low operation noise and friendly environment;
8. Intermediate medium circulation technology: shelf gradient temperature control, uniform plate layer temperature, strong controllability, flat plate layer and good cold and heat conduction;
9. Double machine cascade refrigeration technology: fully enclosed compressor unit and environment-friendly refrigerant are adopted, with low refrigeration temperature and large refrigeration capacity;
10. Negative pressure aeration system: built in 0.2 μ M filter element to reduce secondary pollution of samples, and nitrogen or inert gas can be backfilled;
11. Plug pressing mode: manual or electric;
12. Provide clean room installation solutions;
13. The cold trap has the function of automatic frost.
Parameter:
Model | KFD-1 | KFD-2 | KFD-5 | KFD-6 | KFD-8 | KFD-10 |
Capacity (Kg/Batch) | 10 | 20 | 50 | 60 | 80 | 100 |
Shelf Area (㎡) | 1.1 | 2 | 5 | 6 | 8 | 10 |
Shelf Size (Mm) | 500*400 | 700*500 | 800*895 | 950*800 | 1000*800 | 1190*800 |
Shelf Quantity (Layer) | 5+1 | 6+1 | 7+1 | 8+1 | 10+1 | 11+1 |
Shelf Temperature (℃) | -60 to +70 | |||||
Water Catcher Temper (℃) | -65±5 | |||||
Max Catch Water（Kg） | 15 | 30 | 75 | 90 | 120 | 150 |
Ultimate Vacuum | 1 | 1 | 1 | 2 | 2 | 2 |
Electricity（Kw） | 12 | 16 | 22 | 34 | 34 | 41 |
Size（Mm） | 2200*1000*2000 | 2500*1000*2300 | 2200*1200*2400 | 3500*1400*2430 | 3500*1400*2430 | 4540*1400*2450 |
Weight（Kg） | 1500 | 2000 | 2500 | 3000 | 3500 | 3800 |
Pre-sale:
* As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable freeze dryer. Detailed tech-info will also be provided for you.
* We can do sample test for customers.
After-sale:
* If possible, please do come to our factory and we will teach workers the whole process of freeze drying. The most appropriate time needed for freeze drying will be tested by us.
* We will keep in touch with you, to make sure every parts of the freeze dryer work well. One year warranty, free online service for abroad customers.
