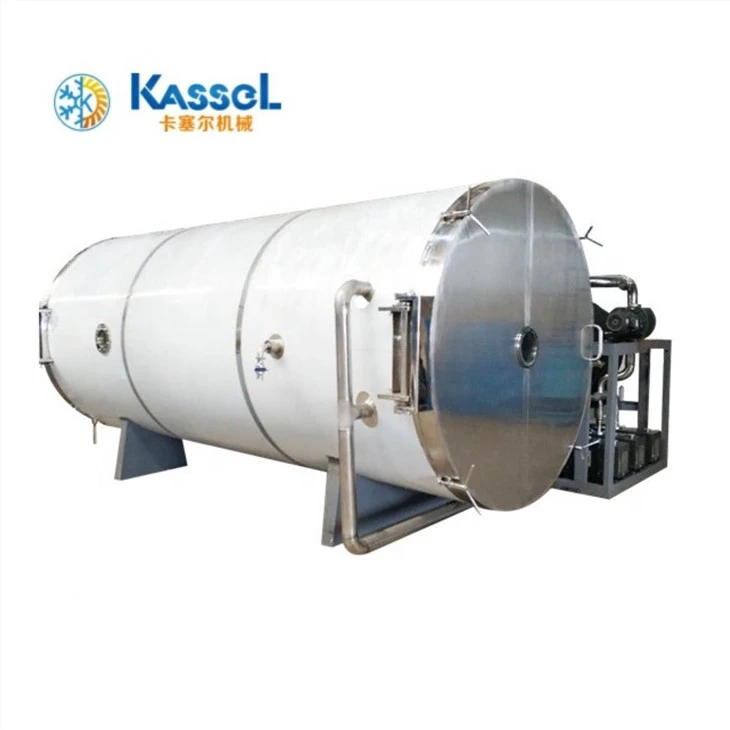

Chili Food Freeze-Drying Machine

If the chili food freeze-drying machine caters to your requirement, welcome to buy the precise equipment made in China from our factory. We are one of the professional manufacturers and suppliers in China who can offer you unmatched services and prices. And the customized service is also available. Don't hesitate any more.



Chili Food Freeze-Drying Machine

The freeze-drying process for preparing chopped chili sauce by a food freeze-drying machine mainly includes the following steps:

The first step, select, choose good chopped peppers for cleaning;

The second step, preparation, chop the above-mentioned cleaned chili peppers into pieces, add an appropriate amount of salt, garlic, ginger and other seasonings, stir evenly, place in a container, and prepare fresh chili pepper sauce;

The third step, plate, put the chili sauce prepared above into the special 304 stainless steel tray of the freeze dryer;

The fourth step, freeze-drying, put the stainless steel tray filled with chili sauce into the drying chamber of the chili food freeze-drying machine, set the freeze-drying process, and then automatically run the vacuum freeze-drying program. Among them, the pre-freezing temperature is -45°C; the sublimation drying temperature is 25°C, and the drying chamber pressure is 5Pa; the analytical drying temperature is 35°C, and the drying chamber pressure is 25Pa;

The fifth step, packaging, waiting for the automatic operation of the freeze-drying process to end, then freeze-dried chopped peppers can be obtained, divided into small squares, and bagged and vacuum-sealed for packaging.

Parameter:

Model	KFD -1	KFD -2	KFD -5	KFD -10	KFD -20
Type	(Conductive Type)
Ice capacity (Kg/batch)	15KG	30KG	75KG	150KG	300KG
Condenser temperature (°C )	< -45 C
Shelf temperature (°C)	-30 ~60 °C
Pre -freezing	(in Original Place)
Shelf area (m2)	1 m2	2 m2	5 m2	10 m2	20 m2
No. of shelves	5+1	6+1	5+1	11+1	14+1
Shelf dimensions (m)	0.5*0.4	1.0*0.4	1.25*0.8	1.2*0.8	1.45*1.0
Shelf spacing (mm)	60	60	70	70	70
Medium	(Silicon Oil)
No. of trays	5pcs	12pcs	30pcs	66pcs	126pcs
Tray dimensions (mm)	400*500	345*495	395*415	395*395	470*325
Refrigerant	R404A
Cooling Method	(Air-cooled) / (Water-cooled)
Final vacuum (Pa)	10Pa
Deforesting method	(Hot water) / (Steam)
Total power (kW)	9kw	13kw	20kw	40kw	50kw
Installation area (m2)	3	6	9	11	15
Chamber dimension(m)	1.2*0.6*1.8	1.5*1.0*1.8	2.5*1.3*2	3.0*1.3*2.5	3.7*2*2.5
Weight (kg)	1500	2000	2500	3800	8500

WORKSHOP:
