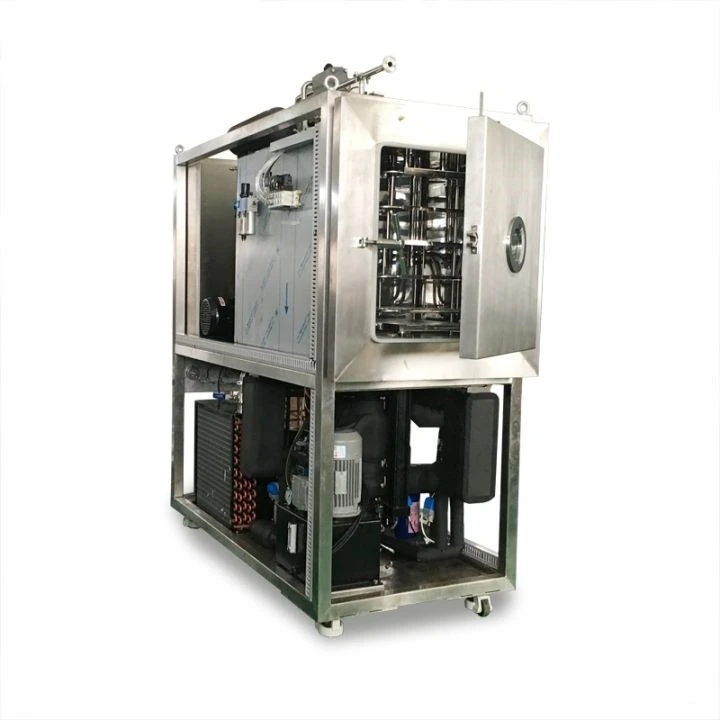

Vacuum Medical Freeze Dryer
Vacuum Medical Freeze Dryer
Principle of Pharmaceutical freeze dryers:
Freeze dryers have components as dry oven, condenser, refrigerating unit, vacuum pump, heating/refrigeration unit and so on. The working principle is to freeze the dried product first, then sublimates the ice in product. After the raw material is processed, it is sent to the freezer for freezing, and then sent to the dry oven for sublimation, in the last, it is packaged in the post-treatment process production workshop.
The freeze drying technique is based on basic principle of sublimation, it is to freeze the dry raw material under super low-temp, then under the appropriate vacuum condition, therefore the frozen moisture would all become vapor. This whole process is known as freeze drying, and the product is freeze dried product.
Pharmaceutical lyophilization machine is equipments that mainly used to freeze dry the biological and chemical products. The product integrates freezing technology, drying technology and fluid technology to realize an efficient and economical freeze-drying process. It is mainly used in biological products, chemical products, bottle freeze (freeze-dried injection), dish freeze (API), natural drugs, heat-sensitive drugs, antibiotics, oral freeze-dried tablets and other pharmaceutical fields to realize the freeze-drying process and achieve the purpose of drying.
The pharmaceutical lyophilizer is developed to start an efficient and economical lyophilizing process. It is designed to maximize the safety of freeze-dried products and is suitable for handling a wide range of high-value freeze-dried products, as well as for operator safety and environmental safety. Through the variety and stability of the lyophilizer product design to provide customers with better equipment life cycle.
Pharmaceutical freeze-drying machine set freezing technology, drying technology, fluid technology in one of the products, by the box, box door, cold trap, plate, refrigeration system, vacuum system, hydraulic system, circulation system, control system and other components or systems, but also according to user needs to increase the CIP/SIP system, CIP cleaning station and other systems.
The whole freeze-drying cycle of the equipment is divided into feeding, pre-freezing, draining, drying, pressure lifting, pre-deflating, pressing plug, deflating, storage, discharging and other steps. In the automatic operation mode, the freeze-drying cycle is automatically executed according to the above steps. The pharmaceutical lyophilizer is designed based on a variety of proven and practical technologies, using high quality raw materials and components that are widely accepted by the pharmaceutical industry. In the manufacturing process is also a large number of advanced technology, can ensure that the equipment can fully meet the requirements of the new GMP standard.
Parameters:
Model | KFD-8 |
Capacity (Kg/Batch) | 80 |
Shelf Area (㎡) | 8 |
Shelf Size (Mm) | 1000*800 |
Shelf Quantity (Layer) | 10+1 |
Shelf Temperature (℃) | -60 to +70 |
Water Catcher Temper (℃) | -65±5 |
Max Catch Water（Kg） | 120 |
Ultimate Vacuum | 2 |
Electricity（Kw） | 34 |
Size（Mm） | 3500*1400*2430 |
Weight（Kg） | 3500 |
