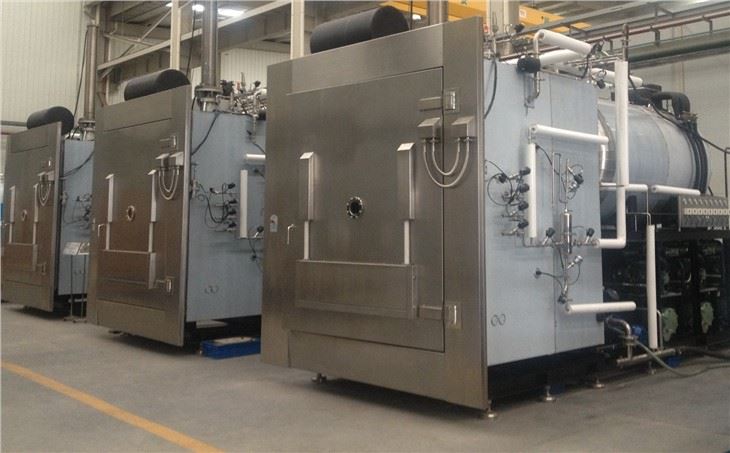

Thrombin Powder Pharmaceutical Freeze Dryer

If the thrombin powder pharmaceutical freeze dryer caters to your requirement, welcome to buy the precise equipment made in China from our factory. We are one of the professional manufacturers and suppliers in China who can offer you unmatched services and prices. And the customized service is also available. Don't hesitate any more.



Thrombin Powder Pharmaceutical Freeze Dryer

Thrombin is a serine proteolytic enzyme that plays an important role in the blood coagulation system. It can hydrolyze the 4 Arg-Gly peptide bonds of fibrinogen and convert the sol-state fibrinogen into gel-state fibrin. At the same time, it can promote platelet aggregation, further accelerate blood coagulation, and achieve the purpose of rapid hemostasis.

At present, most of the thrombin preparations used clinically are prothrombin extracted from bovine blood or pig blood, and the sterile freeze-dried product of thrombin is obtained by activation of the prothrombin activator has high specificity. It is a fast-acting local hemostatic drug, widely used in gastrointestinal bleeding and surgical hemostasis.

The preparation method of porcine thrombin freeze-dried powder by pharmaceutical vacuum freeze dryer, the main steps are as follows:

(1) The separation and purification process of porcine thrombin roughly includes steps such as pretreatment of porcine plasma, extraction of prothrombin, activation of prothrombin, preparation of crude thrombin, and purification of thrombin;

(2) The crude enzyme liquid after inactivating the virus passes through the DEAE-SepharoseFastFlow chromatography column, washes with the equilibrium liquid flow until the baseline is flat, and collects the target peak by elution with the eluent to obtain porcine thrombin;

(3) The pig thrombin obtained in step 2 is added with mannitol or dextran 40 with a final concentration of 15 to 35 g/L, sterilized by filtration, subpackage, lyophilized by a thrombin powder pharmaceutical freeze dryer, and then vacuumed after the freeze-drying process. After pressing the stopper and combining the milk-aluminum-plastic cover, the pig thrombin freeze-dried product is obtained;

(4) The lyophilized product of porcine thrombin is subjected to dry heat treatment for 30 to 120 min at 100° C. to inactivate the virus again, and then packaged to obtain lyophilized porcine thrombin powder.

Parameter:

Model	KFD -1	KFD -2	KFD -5	KFD -10	KFD -20
Type	(Conductive Type)
Ice capacity (Kg/batch)	15KG	30KG	75KG	150KG	300KG
Condenser temperature (°C )	< -45 C
Shelf temperature (°C)	-30 ~60 °C
Pre -freezing	(in Original Place)
Shelf area (m2)	1 m2	2 m2	5 m2	10 m2	20 m2
No. of shelves	5+1	6+1	5+1	11+1	14+1
Shelf dimensions (m)	0.5*0.4	1.0*0.4	1.25*0.8	1.2*0.8	1.45*1.0
Shelf spacing (mm)	60	60	70	70	70
Medium	(Silicon Oil)
No. of trays	5pcs	12pcs	30pcs	66pcs	126pcs
Tray dimensions (mm)	400*500	345*495	395*415	395*395	470*325
Refrigerant	R404A
Cooling Method	(Air-cooled) / (Water-cooled)
Final vacuum (Pa)	10Pa
Deforesting method	(Hot water) / (Steam)
Total power (kW)	9kw	13kw	20kw	40kw	50kw
Installation area (m2)	3	6	9	11	15
Chamber dimension(m)	1.2*0.6*1.8	1.5*1.0*1.8	2.5*1.3*2	3.0*1.3*2.5	3.7*2*2.5
Weight (kg)	1500	2000	2500	3800	8500

FAQ:

Q1：Freeze dryer price?

A： Among the lyophilizer suppliers of the same level, we belong to the people-friendly, competitive and reasonable price.

Q2：What is the energy consumption of the freeze dryer?

A： We can save energy in many ways, such as pre-freezing, reducing energy losses, and using frequency conversion technology. Reduce the power of compressors and vacuum pumps, while ensuring product quality, reducing energy consumption, and reducing machine costs.

Q3：Can you provide a total solution?

A： Certainly. We are a professional manufacturer of customized vacuum freeze dryer overall solutions; we mainly produce all kinds of large fruit and vegetable freeze dryers | food freeze-drying equipment | production freeze dryers | small freeze dryers | pilot freeze-dryers, etc..

Q4:Is it all right to make a customer's own brand name?

A： Yes, we will meet the needs of customers.

Q5：Are you a manufacturer or trading company?

A: We are the manufacturer with decades of research and development production experience.

Q6: Can you do the design for us?

A: Sure. We will supply you with a proposal as to your specific requirement, and each machine is customized to satisfy the customer’s needs well.

Q7: How can I get a sample to check your quality?

A: We could send you the samples but the freight and the sample is charged.

Q8: How long can I expect to get the sample?

A: We will send the samples to you within 30 days after confirming your needs, and the sample arrival time depends on our distance.

Q9: Packaging & Shipping:

A: Export Wooden case&FOB Shanghai/Ningbo.

Our service:

1. Factory Acceptance Test

2. Equipment installation

1) Equipment layout design.

2) Video guidance for installation details and key parts.

3) Submit the installation plan.

4) Dispatch engineers (with professional translators) for on-site installation and acceptance.

3. User training

1) Provide users with a series of professional training from equipment installation and use to maintenance.

2) Provide long-term free technical consultation on product performance, use, maintenance, etc.

4. Pre-sales and after-sales service commitment

1) Customized service

2) Standard documents

Provide supply documents and verification documents according to the actual situation of users.

3) Equipment warranty

4) Equipment troubleshooting

5. Packaging and Delivery

Sea, land, and air are all supported.
