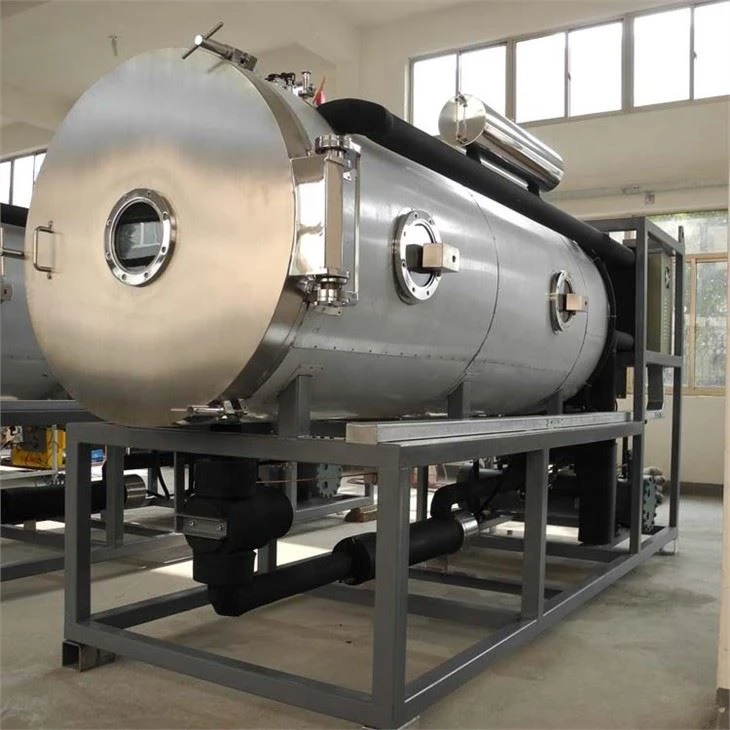

Pharmaceutical Fully Automatic Lyophilizer

If the pharmaceutical fully automatic lyophilizer caters to your requirement, welcome to buy the precise equipment made in China from our factory. We are one of the professional manufacturers and suppliers in China who can offer you unmatched services and prices. And the customized service is also available. Don't hesitate any more.



Pharmaceutical Fully Automatic Lyophilizer

The Freeze Dryer can be used to separate and recover volatile materials and to purify substances. The basic steps are:

1. Freezing: Freezing materials, which provide a necessary condition for low temperature drying.

2. Vacuum: The frozen material needs to be in a vacuum environment. This will ensure that the frozen liquid in the material is directly vaporized without passing through the liquid. This process is a physical sublimation.

3. Heating: The purpose of heating to the lyophilized product is to accelerate the rate of sublimation.

4. Adsorption: The cryotrap converts steam into a solid by a vacuum pump, which completes the drying process of the product.

Parameters

Model	KZG-10
Shelf area (m2)	10.2
Shelf quantity (pcs)	9+1
Heating medium	Silicone oi
Temp. range (℃)	RT -120℃
Water capture capacity (KG)	200
Lowest Condenser temp. (℃)	-60
Ultimate vacuum (Pa)	10Pa
Install power (KW)	24
Cooling type	Air cooled/Water cooled
Weight(ton)	10

Frequently Asked Questions for Freeze Dryers

1. floor type Freeze Dryer circulating pump has a serious fault

Answer: The floor type Freeze Dryer Circulating Pump is more prone to failure. The module enters the water and burns the module. The more serious the motor may burn out. To prevent condensate from entering the module, a short circuit is caused. The module is usually coated with 704 sealant to prevent water from entering. In addition, we keep the entire circulating pump warm and protect it, and the condensate will be less.

Floor type Freeze Dryer technicians suggest that two circulating pumps should be operated in turn. It is best not to run one pump all the time. One batch of medicine can be used for one operation, and the other batch can be operated by another one. It is much smaller.

Our certificate
