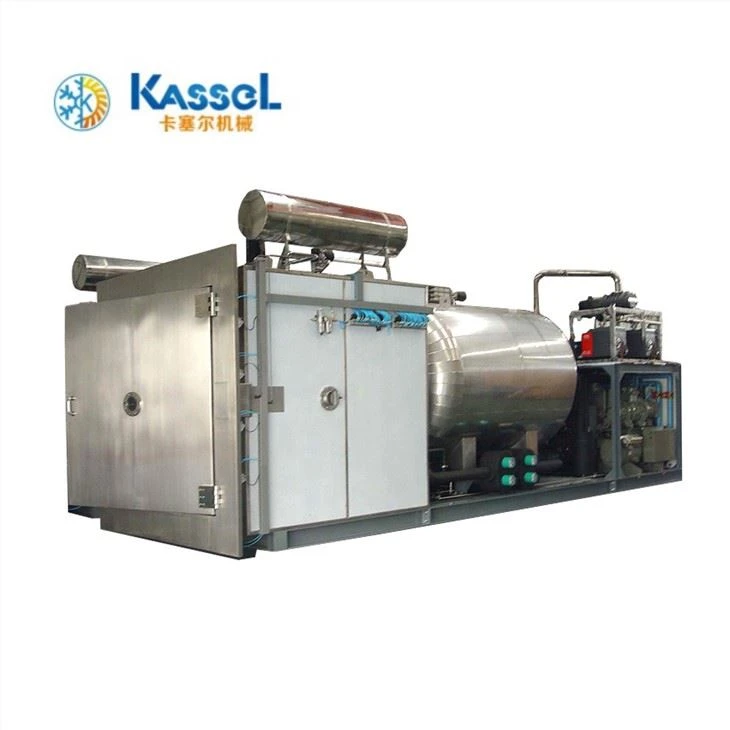

Centipede Freeze-Drying Equipment



Centipede Freeze-drying Equipment

Features of centipede freeze-drying equipment

1. Easy to use, no leakage;

2. Stainless steel material, corrosion-resistant and easy to clean;

3. With the pre-freezing function, no refrigerator is required;

4. Well-known brand compressor, high efficiency, and energy saving;

5. Large pumping speed vacuum pump to achieve higher ultimate vacuum;

6. Professional modular controller with strong stability;

7. Multiple protection measures to prolong the service life;

8. Intelligent data recording and export function.

Processing technology of centipede medicinal freeze-drying by centipede freeze-drying equipment

Processing technology of centipede medicinal freeze-drying

1.Collect fresh centipedes from reliable sources to ensure they are healthy and undamaged.
2.Wash the centipedes with clean water or disinfected solution to remove dirt and impurities to ensure clean samples during the freeze-drying process.

3. Then place it on the shelf in the drying box of the vacuum freeze dryer, spread the centipede to 8～10Kg/m2, turn on the refrigeration equipment, and adjust the temperature in the drying box to -38～ -40℃, freeze the centipede for 2-3 hours; turn on the mechanical vacuum pump to adjust the pressure in the drying box to 12.5-13.3Pa; turn on the Roots vacuum pump, and the pressure drops to 1.3-1.33Pa; the ice in the frozen centipede at this time That is, it sublimates into water vapor; turn on the condenser, adjust the temperature to -57～-60℃, and the water vapor forms frost on the condenser; turn on the heating system, and slowly heat the shelf temperature from -38～-40℃ to 9～10 ℃, this process is 9～13 hours; Slowly heat the shelf temperature to 28～30 ℃, this process is 7～9 hours; The condenser water catch accounts for 65～85% of the total mass, namely the dry centipede;

4. Seal the package to get the finished centipede; or use a low-temperature flouring machine to make 50-200 mesh powder to get the centipede powder. The centipede powder is put into empty capsules to obtain freeze-dried centipede powder capsules.



Essential technical features of the centipede freeze dryer

• Freezing temperature: Between -40°C and -80°C is often the lowest freezing temperature that can be reached.
• Vacuum degree: To successfully encourage the sublimation process, the vacuum system must be able to sustain a high vacuum degree.
• Processing capacity: Select equipment that can be used for batch or continuous processing based on your demands.
• Heating technique: To prevent overheating and sample damage, the heating system should be able to regulate the temperature variation during the sublimation step.
• Automation degree: To guarantee a precise and steady freeze-drying operation, the freeze dryer is outfitted with an automated control system.


Use and upkeep guidelines

• Frequent cleaning: Keep the equipment's interior clean to avoid contamination, especially for important parts like vacuum pumps and condensers.
• Calibration of pressure and temperature: To keep the machinery operating at peak efficiency, check and adjust the pressure and temperature on a regular basis.


Parameter:

Model	KFD-1	KFD-2	KFD-5	KFD-6	KFD-8	KFD-10
Capacity (Kg/Batch)	10	20	50	60	80	100
Shelf Area (㎡)	1.1	2	5	6	8	10
Shelf Size (Mm)	500*400	700*500	800*895	950*800	1000*800	1190*800
Shelf Quantity (Layer)	5+1	6+1	7+1	8+1	10+1	11+1
Shelf Temperature (℃)	-60 to +70
Water Catcher Temper (℃)	-65±5
Max Catch Water(Kg)	15	30	75	90	120	150
Ultimate Vacuum	1	1	1	2	2	2
Electricity(Kw)	12	16	22	34	34	41
Size(Mm)	2200*1000*2000	2500*1000*2300	2200*1200*2400	3500*1400*2430	3500*1400*2430	4540*1400*2450
Weight(Kg)	1500	2000	2500	3000	3500	3800



Pre-sale:

* As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable freeze dryer. Detailed tech info will also be provided for you.

* We can do sample tests for customers.

After-sale:

* If possible, please do come to our factory and we will teach workers the whole process of freeze-drying. The most appropriate time needed for freeze-drying will be tested by us.

* We will keep in touch with you, to make sure every part of the freeze dryer works well. One-year warranty, free online service for abroad customers.



FAQ:

Q1：Are you a manufactuer or trading company?

A:We are the manufacturer with decades of research and development production experience.

Q2:Packaging & Shipping:

A:Export Wooden case&FOB Shanghai

Q3:What's your payment term?

A:50% T/T prepay,50% when you see the copy of B/L.

Q4:How long is the warranty period?

A:The warranty period is 12 months.
