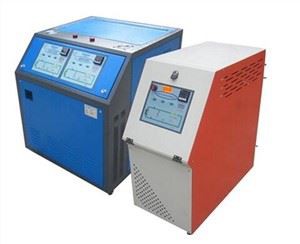

Wind Power Mould Heater
Detailed introduction of wind power mould heater
Wind turbine mold heater wind turbine blade heater wind turbine mold heater wind turbine blade special mold temperature machine, water temperature heater temperature control characteristics: according to the wind turbine blade process requirements to achieve the mold ladder temperature control, thermal insulation dc resistance tester to solve the situation of uneven temperature control of electric heating
Computer touch control, easy to operate.
2. Two sets of P.I.D temperature control meters imported from Japan, touch type internal storage, automatic calculation, power saving more than 35%.
3. Perfect safety protection and fault indication system.
4. Imported advanced components with long service life.
5 litres of cooling speed, accurate and stable temperature.
6 unique dual power heating design, suitable for different temperature control places, energy-saving effect is obvious.
7 stainless steel integrated forming, small pipe damage, uniform heating.
8. Turn on the automatic exhaust function.
Mould backwater temperature test table.
10. Forced cooling function.
Water temperature heater parameters table
|
Model |
Unit |
KSRD-30 |
KSRD-50 |
KSRD-75 |
KSRD-100 |
|
Controlrange |
℃ |
98℃ |
|||
|
Temp.controlaccuracy |
℃ |
PID±1℃ |
|||
|
Power |
AC3∮380V50HZ3P+E（5M） |
||||
|
Heattransfermedium |
WATER |
||||
|
Coolingmethod |
Direct cooling (indirect cooling is optional) |
||||
|
Heatingcapacity |
KW |
9 |
24 |
36(optional) |
48(optional) |
|
Pumppower |
HP |
3 |
5 |
7.5 |
10 |
|
Max.Pumpfolw |
L/MIN |
250 |
400 |
750 |
960 |
|
System pressure |
KG/CM2 |
4.2 |
4.8 |
6.8 |
7.5 |
|
Powersupply |
KW |
11 |
28 |
42 |
56 |
|
Alertfunction |
Phase deficiency/water shortage/over temperature/overload |
||||
|
Coolingwaterpipe |
INCH |
3/4 |
2 |
2 |
2 |
|
Circulationwaterpipe |
INCH |
1-1/2 |
2 |
2-1/2 |
2-1/2 |
|
LxWxH |
MM |
800＊330＊720 |
1050＊600＊900 |
1450＊620＊1200 |
1450＊620＊1200 |
|
Weight |
KG |
72 |
180 |
220 |
260 |
