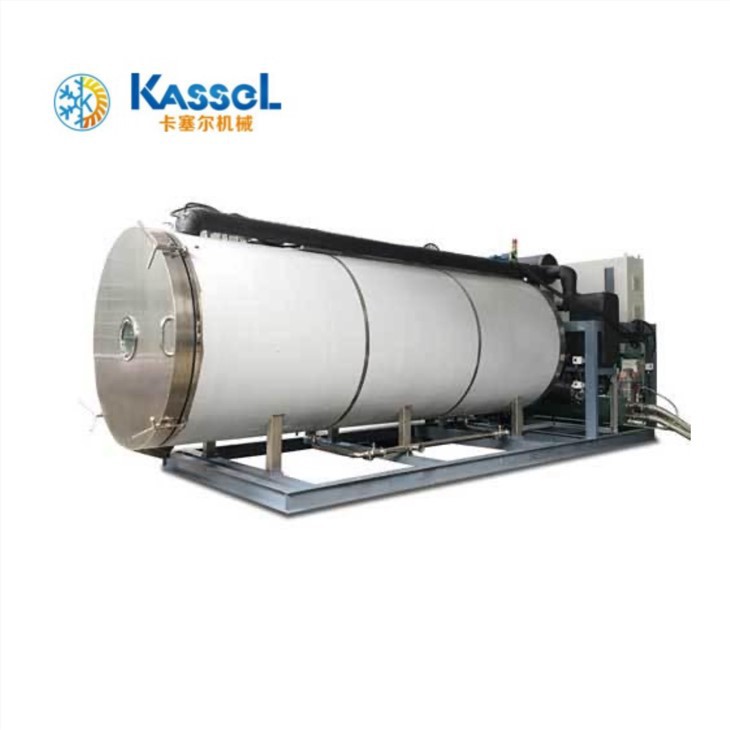

Pilot Scale Freeze Dryers



Pilot Scale Freeze Dryers

Besides being used for small-lot production, the pilot scale freeze dryers produced by Kassel Machinery also are the ideal models for pilot experiments and small-scale production of all enterprises and scientific research institutions.

Silicone oil is used for heat conduction of the pilot-type lyophilizers with high-temperature control accuracy, which can guarantee the temperature difference between all layers of clapboards and between all clapboards is small. The electronic control system is powerful, which is helpful for both setting freeze-drying technology and matching PLC control systems to realize eutectic point tests, remote control, and other functions. The high transparent organic glass door panel is convenient for observing the freeze-drying process of materials.

Application:

Freeze dryers are suitable for drying a variety of products, covering food, medicine, biological products and other fields. The following are some common applicable products:

1. Food
Fruits: such as strawberries, blueberries, apples, bananas, mangoes, etc., can be used as snacks or raw materials after freeze drying.
Vegetables: such as carrots, peas, spinach, mushrooms, etc., can be used in fast food or condiments after freeze drying.
Meat and seafood: such as beef, chicken, fish, shrimp, etc., can be used in convenience food, pet food or outdoor food after freeze drying.
Dairy products: such as milk, yogurt, cheese, etc., can be made into milk powder or ready-to-eat dairy products after freeze drying.
Ready-to-eat food: such as coffee, soup, porridge, etc., freeze drying technology can retain the original flavor and nutrition of food.
2. Medicine and Chinese herbal medicine
Chinese herbal medicine: such as ginseng, ganoderma lucidum, dendrobium officinale, cordyceps sinensis, etc., can retain the active ingredients of medicinal materials after freeze drying and extend the shelf life.
Biological products: such as vaccines, antibodies, serum, etc., preserve activity through freeze drying technology, which is convenient for storage and transportation.
Medical excipients: such as collagen, protein solution, etc., which are used to prepare pharmaceutical preparations after freeze-drying.
3. Cosmetic raw materials
Plant extracts: such as aloe, rose, chamomile extracts, etc., are used in the production of high-end skin care products.
Active ingredients: such as hyaluronic acid, vitamin C, etc., which can better maintain their stability and activity after freeze-drying.
4. Pet food
Pet snacks: such as chicken, duck, fish, etc., which retain their original nutrition and flavor after freeze-drying and are very popular with pets.
Pet nutritional supplements: such as freeze-dried liver, freeze-dried protein powder, etc., provide the nutrition needed by pets.

Parameter：

Model	KFD-1	KFD-2	KFD-5	KFD-6	KFD-8	KFD-10
Capacity (Kg/Batch)	10	20	50	60	80	100
Shelf Area (㎡)	1.1	2	5	6	8	10
Shelf Size (Mm)	500*400	700*500	800*895	950*800	1000*800	1190*800
Shelf Quantity (Layer)	5+1	6+1	7+1	8+1	10+1	11+1
Shelf Temperature (℃)	-60 to +70
Water Catcher Temper (℃)	-65±5
Max Catch Water(Kg)	15	30	75	90	120	150
Ultimate Vacuum	1	1	1	2	2	2
Electricity(Kw)	12	16	22	34	34	41
Size(Mm)	2200*1000*2000	2500*1000*2300	2200*1200*2400	3500*1400*2430	3500*1400*2430	4540*1400*2450
Weight(Kg)	1500	2000	2500	3000	3500	3800

Pre-sale:

* As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable freeze dryer. Detailed tech info will also be provided for you.

* We can do sample tests for customers.

After-sale:

* If possible, please do come to our factory and we will teach workers the whole process of freeze-drying. The most appropriate time needed for freeze-drying will be tested by us.

* We will keep in touch with you, to make sure every part of the freeze dryer works well. One-year warranty, free online service for abroad customers.

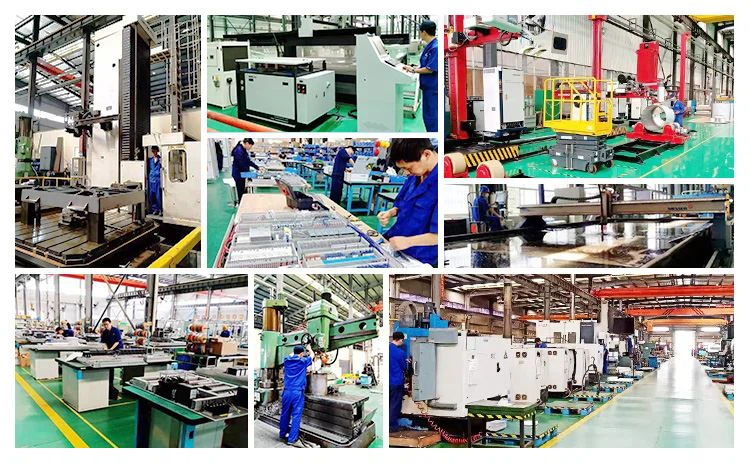

Workshop:

Exhibition:

Certificates:
