Pre-freezing Function Lab Freeze Dryer with LCD Display Drying Curve for Bacteria Protein

Pre-freezing function lab freeze dryer with LCD display drying curve for bacteria protein Product Application: Freeze dryer is widely used in medicine, pharmacy...

Send InquiryChat Now
Product Details

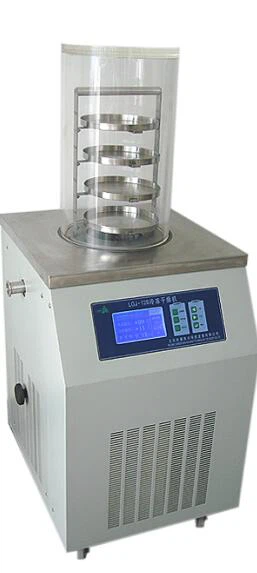

Pre-freezing function lab freeze dryer with LCD display drying curve for bacteria protein

Product Application:
Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.
The vacuum freeze drying technology,which is also calledsublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuumstate.


Features and benefits:

1.Touchscreen display, PID function adjust
2.Compound refrigeration technology, less frozen dry time
3.Large freezing capacity and large water capture capacity
4.Material is 304 stainless steel in side, to keep anti-corrosion, strong and easy to clean
5.Silicone oil frozen medium, the deviation is no more than 1°C, so drying uniformly
6.Drying chamber's door is made of high transparent and colorless transparent organic glass
7.Optional for in situ pre freezing
8.Optional temperature recorder, the adjustable temperature record point and real-time monitoring
9.Optional eutectic point test device, and automatic pressure plug device
10.Square shelf is not easy deformation, easy operation and cleaning

Parameter

Parameters

SJIA-10N (Desktop)

SJIA-12N(Vertical)

SJIA-18N

SJIA-18SN

Model

No-load temperature

<-50°C,<-80°C optional

<-50°C,<-80°C optional

<-50°C,<-80°C optional

<-60°C,<-80°C optional

No-load freeze area

0.09-0.12m2

0.09-0.18m2

0.09-0.27m2

0.09-0.27m2

Plate load materials

0.7-1.2L

0.7-2L

2-3.5L

2-3.5L

Ability to capture water

3Kg/24h

4Kg/24h

6Kg/24h

6Kg/24h

Vaccum

<10Pa

<10Pa

<10Pa

<10Pa

Dimension

500 x 395 x 370+420(drum) mm

500 × 400 × (650+420drum)mm

830 x 532 x 900+420(drum)

830 x 532 x 900+420(drum)

Material Tray Specifications

Φ200mm four-layered(common)
Φ200mm three-layered(with cover)

Φ200mm four-layered 70mm(common)
Φ200mm six-layered 50mm(common)
Φ200mm three-layered(with cover)

Φ240mm four-layered 70mm(common)
Φ240mm six-layered 50mm(common)
Optional:
Φ200mm three-layered(with coverd)

Φ240mm four-layered  70mm(common)
Φ240mm six-layered 50mm(common) optional
Φ200mm three-layered (with cover)

Consuming wattage

1000VA

1000VA

1300VA

1300VA

Voltage

220V 50HZ /110V 60Hz

220V 50HZ /110V 60Hz

220V 50HZ /110V 60Hz





Four kinds of machine.

If the pre-freezing function lab freeze dryer with lcd display drying curve for bacteria protein caters to your requirement, welcome to buy the precise equipment made in China from our factory. We are one of the professional manufacturers and suppliers in China who can offer you unmatched services and prices. And the customized service is also available. Don't hesitate any more.
